Bifurcated Riser X16 to 4X4 (set with length 1m)
Statt 240,35 $
In order to use full functionality, you should have a motherboard that supports active Bifurcation from BIOS settings. There should be an option for setting how the bifurcation will work. (Example: from x16 to 4x4) If you don't have this option active and functional from your motherboards BIOS, you won't be able to use the full functionality of this product.
- Supports PCI-e standards 1.0, 1.1, 2.0, 3.0
- High quality Solid Capacitors, Voltage Regulation, and Overcurrent Protection to provide reliable and stable performance and long lifespan. Ideal for 24/7 non-stop working environment
- Gold plated contacts for flawless connectivity and long lifespan.
- High quality clock generator for stable work
- 4 Mount holes for attaching the Extender card to different surfaces
- 6-pin PCI-e power for each Extender Card
- Color: White
- Transparent device, works with all operating systems and NO drivers are required.
- Supported OS: Windows 7/8/10/; Windows server 2016/2019; Linux; FreeBSD; All unlisted OS are also supported.

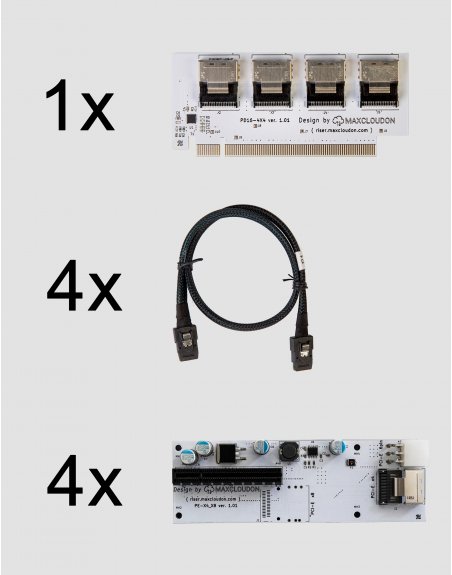

This pack of PCI Express Bifurcation riser contains:

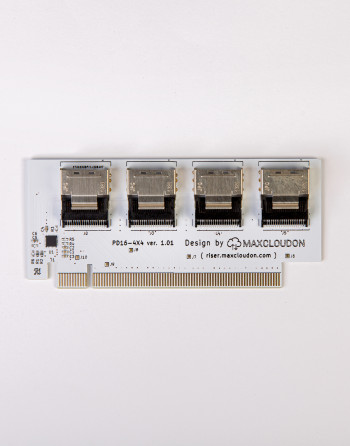

1 x Riser Daughterboard PD Type-PD16-4x4 - Size: 111mm x 49mm x 10mm

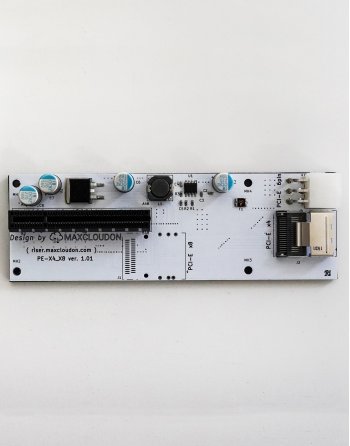

4 x Riser Extender Card PE Type-PE-X4 - Size: 135mm x 44mm x 14mm

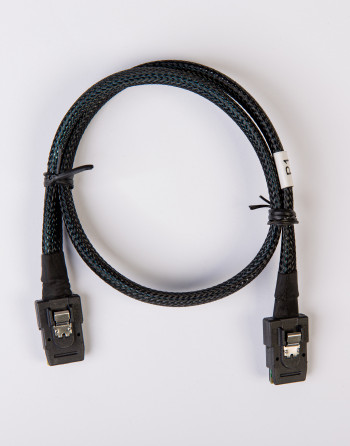

4 x Riser cable RC Type-RC100-X4 - Length: 94cm (37.00") from end of plug to end of plug - 100cm (39.37") with plugs (+/- 2%)
* - Disclaimer: Product images are for illustrative purposes only and may slightly differ from the actual product.
